Product Description

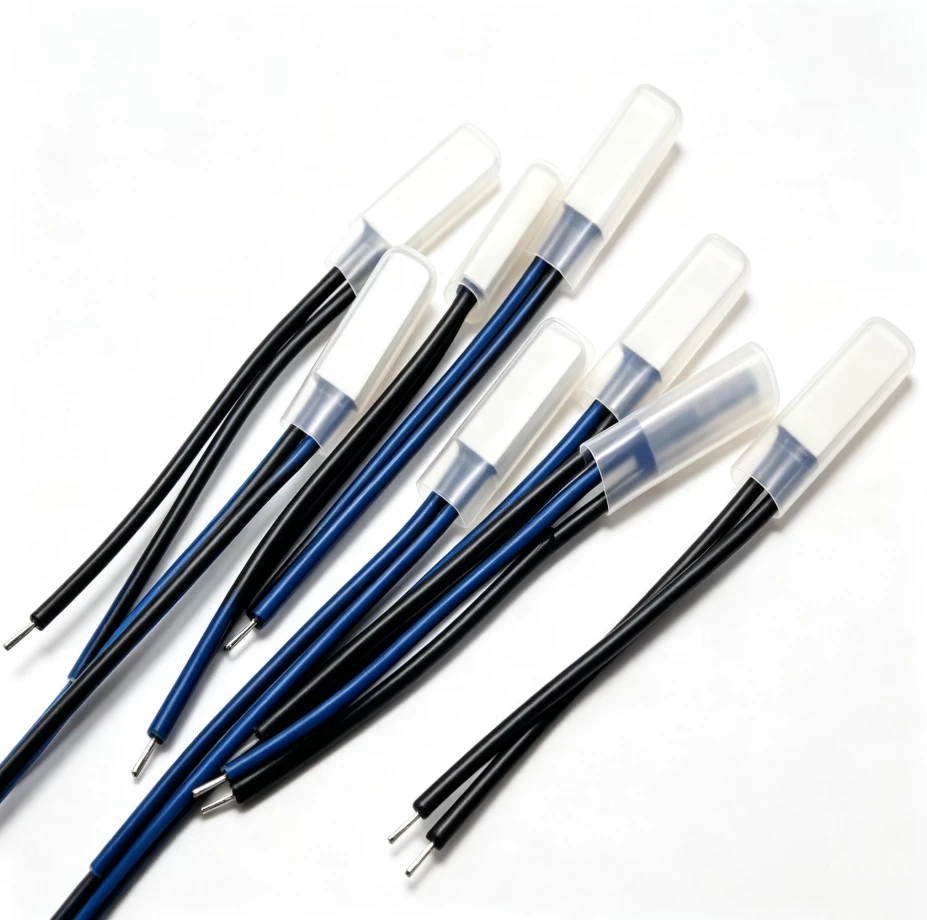

The KSD9700 Series thermal protector features an advanced snap-action bimetal disc, compact construction, high contact capacity and long service life. It provides reliable overtemperature and overcurrent protection for motors, induction cookers, vacuum cleaners, air conditioners, solenoids, transformers, electric heaters, fluorescent-lamp ballasts, automotive motors, integrated circuits and household appliances.
Product Features
- Compact size for easy installation.
- Each unit is individually calibrated and temperature-tested.

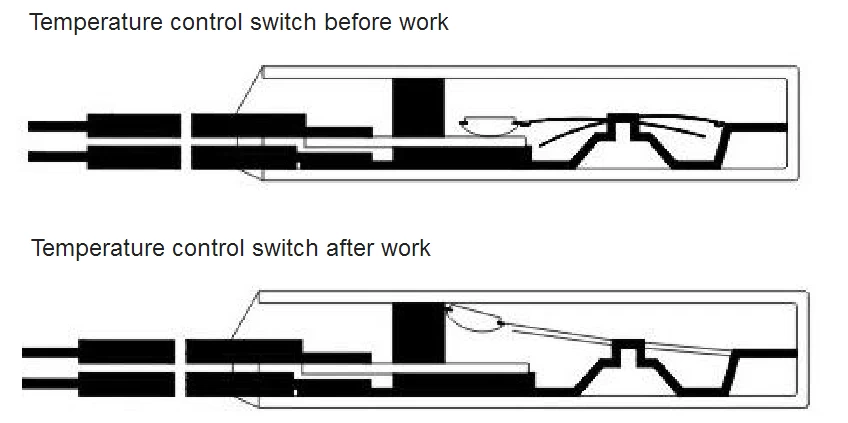

- Reliable snap-action switching using a bimetal disc.
- Stable and repeatable temperature performance throughout its service life.
- Available with metal or plastic housings.
- High thermal sensitivity for flexible product design.
- Multiple lead-wire and imported Mylar insulating-sleeve options.
- Components comply with strict RoHS environmental requirements.
- Cadmium-free silver-nickel alloy contacts.
- Wide selection of operating temperatures.
- Low internal resistance of less than 50 mΩ.
- Normally closed and normally open versions available.
- Customizable high-temperature-resistant lead wires.
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | Thermal Protector |
| Model | KSD9700 |
| Switch Type | Normally Closed (NC) / Normally Open (NO) |
| Housing Material | Metal or plastic |

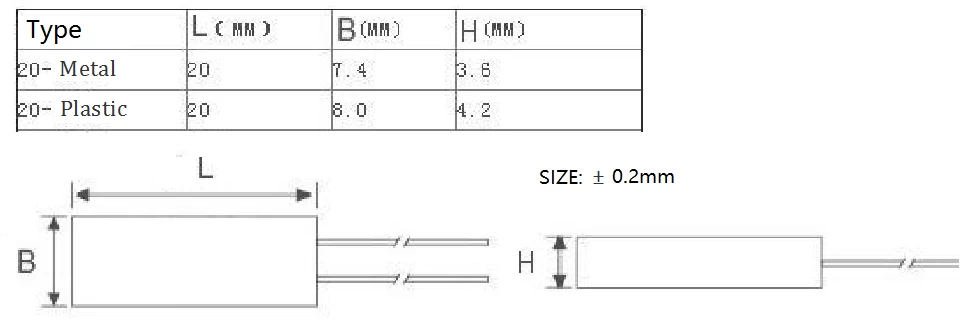

| Metal Housing Dimensions | 20 × 7.4 × 3.6 mm |
| Plastic Housing Dimensions | 20 × 8.0 × 4.2 mm |
| Rated Voltage | 250 V |
| Maximum Current | 5 A at 250 VAC |
| DC Contact Rating | 12 VDC/12 A; 24 VDC/10 A |
| AC Contact Rating | 125 VAC/8 A; 250 VAC/5 A |

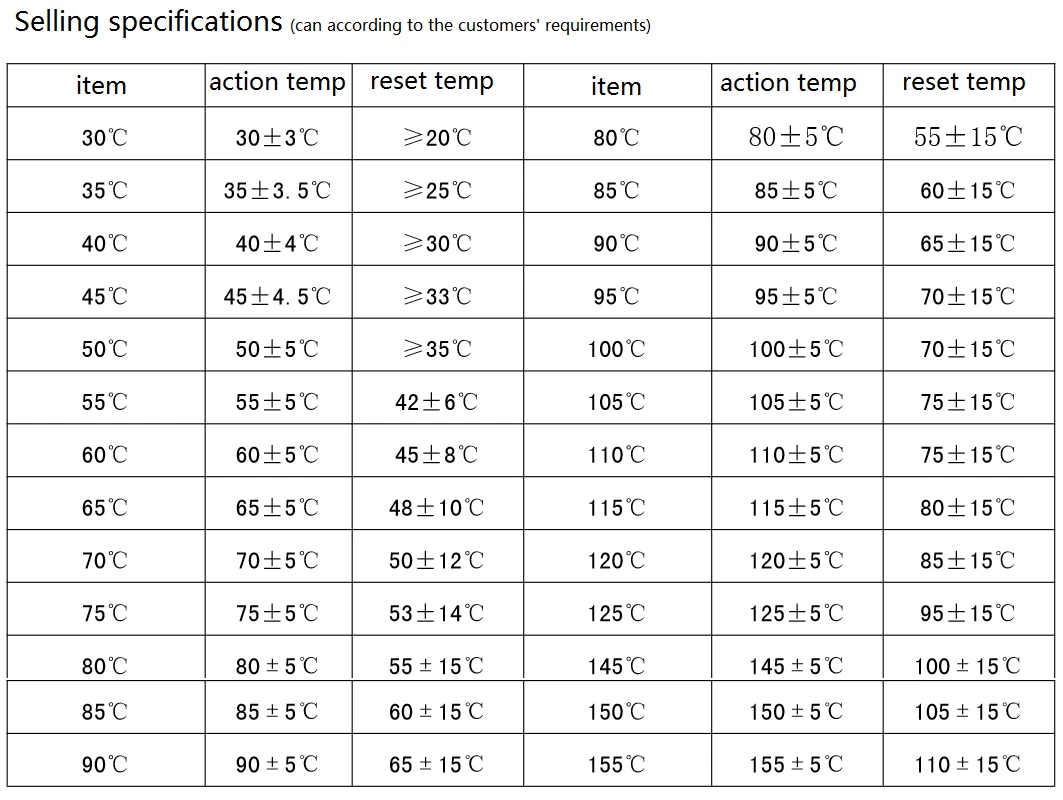

| Operating Temperature Range | 20°C–180°C |
| Operating Temperature Tolerance | ±3°C or ±5°C |
| Reset Temperature Range | 10°C–140°C |
| Reset Temperature Tolerance | ≤15°C |
| Dielectric Strength | >800 VAC |
| Contact Resistance | <50 mΩ |
| Insulation Resistance | >100 MΩ |
| Temperature Change Rate | ≤1°C/min |
| Service Life | More than 10,000 cycles |
Typical Applications
- Electric motors and automotive motors
- Air-conditioner motors
- Transformers and solenoids
- Induction cookers
- Vacuum cleaners
- Electric heaters and heating appliances
- Fluorescent-lamp ballasts
- Integrated circuits
- Household electrical appliances
Customization
Operating temperature, reset temperature, switch type, lead-wire length, insulation sleeve and housing material can be customized according to application requirements.
