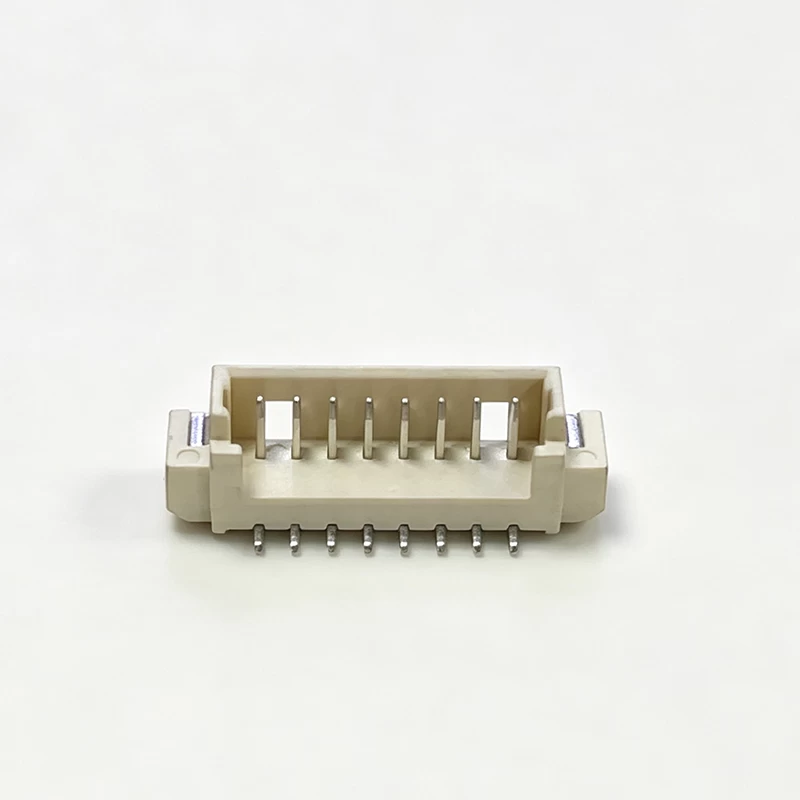

Single Row 1 × 8P Locking Wire to Board Wafer
Product Description
This 1.25 mm pitch, single-row 8-pin vertical SMT connector is designed for compact wire-to-board connections carrying multiple signal circuits and low-current power.
Its extended LCP housing provides adequate insulation spacing between adjacent contacts. Multiple solder tabs distribute mechanical stress across the PCB, helping reduce connector lifting, solder-joint damage and deformation during mating.
Key Features
- Compact 1.25 mm contact pitch.
- Single-row 8-pin configuration.
- Vertical surface-mount installation.
- Locking structure helps prevent accidental disconnection.
- Polarized design supports correct mating orientation.
- Extended base provides improved structural stability.
- Multiple solder tabs distribute mechanical stress.
- Suitable for signal and low-current power transmission.
- Compliant with RoHS requirements.
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Vertical SMT wire-to-board connector |
| Contact Pitch | 1.25 mm |
| Number of Contacts | 8 pins |
| Row Configuration | Single row, 1 × 8P |
| Mounting Type | Vertical surface mount |
| Locking Structure | Locking latch |
| Dimension L1 | 15 mm |
| Dimension L2 | 8.75 mm |
| Rated Current | 1 A AC/DC |
| Rated Voltage | 200 V AC/DC |
| Operating Temperature | -20°C to +85°C |
| Contact Resistance | ≤30 mΩ |
| Insulation Resistance | ≥500 MΩ |
| Dielectric Withstanding Voltage | 500 VAC for 1 minute |
| Environmental Compliance | RoHS |
Materials and Finish
| Component | Material or Finish |
|---|---|
| Housing | LCP |
| Contacts and Solder Tabs | Brass |
| Contact Plating | Nickel and tin |
Structural Advantages
Multi-Pin Signal Connection
Eight contacts support the simultaneous transmission of multiple signal circuits and a small amount of power through one compact connector.
Stable PCB Mounting
The extended housing and multiple solder tabs improve resistance to deformation and distribute mating forces across the PCB, helping reduce solder-joint lifting.
Secure Mating
The locking and polarized structure helps prevent incorrect insertion, accidental separation and connection failure caused by vibration.
Applications
- Compact control panels
- Multi-channel sensor modules
- Internal wire-to-board connections
- Smart-home devices
- Small household appliances
- Electronic door locks
- Wearable electronics
- Drones and model-aircraft control systems
- Industrial control boards
- LED driver boards
- Battery-management and automotive modules
- LCD and OLED display modules
- Camera modules
- Bluetooth and Wi-Fi modules
- Security equipment and robots
- Portable medical monitoring devices
Product Classification
- Primary Category: Electronic Components
- Secondary Category: Connectors, Terminals and Interconnects
- Product Type: Wire-to-Board Connector
- Mounting Category: Vertical SMT Wafer
- Pin Configuration: 1.25 mm Pitch, Single Row, 8 Pin
